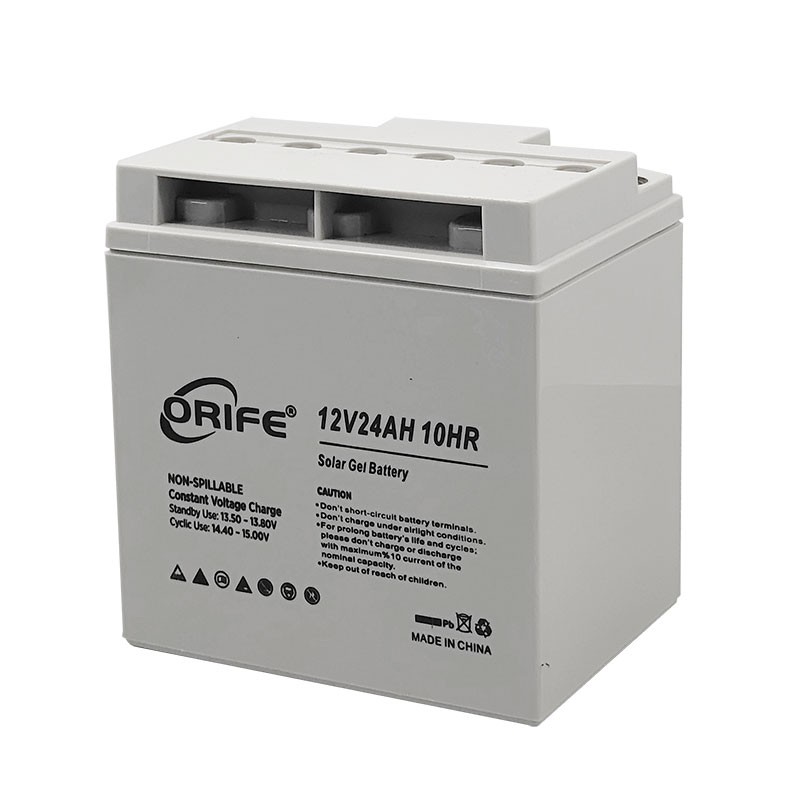

12V 24AH Solar Gel Deep Cycle Battery

A gel battery is a valve regulated, maintenance free, lead acid battery.  Gel batteries are extremely robust and versatile. These type of batteries produce few fumes and can be used in places without much ventilation.

How does a gel battery work?

A gel battery s a valve regulated, lead acid battery in which a pre-determined quantity of an electrolyte, together with sulphuric acid is combined with silica fumes. This chemical reaction results in an immobile, gel like mass giving these batteries their name. The gel batteries are virtually maintenance free as they uses one-way open valves that allow the internal gasses to recombine into water, hence removing any need to check to top up distilled water or monitor water level. Gel batteries are extremely robust and versatile. They are safe to be installed in places where ventilation is limited, due to fact that they have a very low (virtually zero) gas/fumes production, which means you can even install the batteries inside your home.

GEL DEEP CYCLE BATTERY

Deep circulation gel cell is very common in various fields, and mainly the three types.

1. Pure battery gel deep cycle:

. No free electrolyte, no maintenance

. Designed floating service life: 15 years at 25°C

. Wide operating temperature range of -15° C-35 °C

. The electrolyte of pure gel battery eliminates acid stratification and extends the cycle life

. Low self-discharge rate: ≤ 3% / month.

2. Sealed gel battery:

Sealed gel batteries are maintenance-free, robust in structure, provide the highest level of reliability and performance, and have excellent deep discharge durability and excellent charging performance, making them the best choice for batteries in industrial projects.

In some parts of the world where electricity is unstable, high-capacity backup power is needed. Sealable gel batteries provide high-capacity backup power and true deep cycling performance. It requires no maintenance and is ideal for areas with unstable power supplies.

3. Solar gel battery:

It is very popular in solar energy systems because it has the following characteristics:

. Best suited for deep cycle applications, they usually have a life span of 500 to 5,000 cycles

. Maintenance free

. Leak prevention

. Minimum corrosion, so it is compatible with sensitive electronic equipment

. Durable and vibration resistant

. Very safe, because the risk of sulfuric acid combustion is small

. Minimum monthly cost (life cycle/cost)

. Lowest single-cycle cost (cost/life cycle)

The Gel Deep Cycle Battery with Different Voltage

The gel battery series is designed to meet the requirements of frequent cycling and high-temperature applications. Such as broadband, solar, and others through the latest gel technology. Gel power battery uses high-purity pyrolytic silica of German origin to form thixotropic gels and fill with vacuum batteries to ensure full penetration of electrolytes through partitions and plate pastes. The most common gel power battery voltage is 12v, and there are different capacities such as 100ah, 105ah, 150ah, 200ah, etc.

A deep circulation gel cell is a lead-acid cell regulated by a rubber valve, in which a predetermined amount of electrolyte is mixed with sulfuric acid and silicon smoke.

This chemical reaction produces a fixed, gelatinous mass. Gel power battery is virtually maintenance-free because they use one-way open valves to recombine internal gases into the water, so there is no need to check for filling distilled water or monitoring the water level. The gel power battery is extremely strong and versatile. They are installed safely in places with limited ventilation because their gas/smoke production is very low (almost zero), which means you can even install batteries in your home.

General deep circulating gel power batteries according to the different voltages can be divided into 6-volt gel deep cycle batteries and 12v gel deep cycle batteries, gel batteries of the two different voltages can be applied to different places, for example, telecommunication systems and solar power, monitoring and control system, automation system, a data processing system, renewable energy systems (solar, wind and water and electricity), emergency lighting systems, uninterruptible power supply (UPS) and port systems, in order to satisfy the demands of different power supply. But they all have the following characteristics:

. Better performance and long cycle life

Gel electrolytes can form a solid protective layer around the plate, protective plate to avoid damage due to vibration or collision, rupture, and prevent plate corrosion, but also reduce the battery when using a large load short circuit between the plate and plate bending, not led to the decrease of the capacity, has the very good physical and chemical protection, is twice that of ordinary lead-acid battery life.

. Safe to use, conducive to environmental protection, belongs to the real sense of green power

The electrolyte of the gel batteries for sale are solid, sealed structure, gel electrolyte, never leakage, so that the specific gravity of each part of the battery is consistent. The use of a special calcium-lead-tin alloy grid, more corrosion resistance, and charging ability is better. The high-strength baffle plate is adopted to avoid short circuits. Imported high-quality safety valve, and accurate valve control pressure regulation. Equipped with a filter acid mist explosion-proof device, safer and more reliable. There is no acid fog gas precipitation and electrolyte leakage during use. The production process does not contain harmful elements to the human body, which is non-toxic and pollution-free, avoiding a large amount of electrolyte leakage and infiltration during the use of the traditional lead-acid battery. The floating charging flow is small, the battery has less calorific value, and the electrolyte has no acid stratification.

. Good deep discharge cycle performance

Under the circumstance of timely replenishment after deep discharge of the battery, the capacity can be 100% recharged, which can meet the needs of high frequency and deep discharge, so its range of use is wider than that of lead-acid batteries.

Small self-discharge, good deep discharge performance, strong charging receptivity, small potential difference up and down, large capacity. In the low-temperature start-up ability, charge retention ability, electrolyte retention ability, cycling endurance ability, vibration resistance, temperature resistance, and other aspects of the performance are significantly improved. Stored at 20℃ room temperature for 2 years, it can be put into operation without charging.

. Extensive adaptation to the environment (temperature)

The gel battery for sale can be used in the temperature range from -40℃ to 65℃. Especially, it has good low-temperature performance and is suitable for alpine areas. Good aseismic performance can be used safely in all kinds of harsh environments. Not limited by space, can be placed in any direction when used.

KIJO is a leading gel deep cycle battery manufacturer & supplier in China, please contact us!

Advantages of Gel Batteries

1、Best for cyclic applications

2、High temperature tolerance

3、Excellent for long/deep discharge

4、High temperature tolerance

5、Positive plate protected design

6、Thicker plates for reduced grid corrosion and increased cycle life

7、High resistance to water loss and shorting

Features

1、Maintenance-free operation

2、Low self discharge (long shelf life)

3、Spill-proof construction

4、Wide operating temperature

5、100% memory-free

6、Non-restricted for air transportation

7、UL Listed - UL file no. MH19767

8、Design life of 5 – 10 years in float service

Applications

1、Utility (switchgear)

2、Telecom

3、UPS systems

4、Emergency lighting

5、Alarm systems
